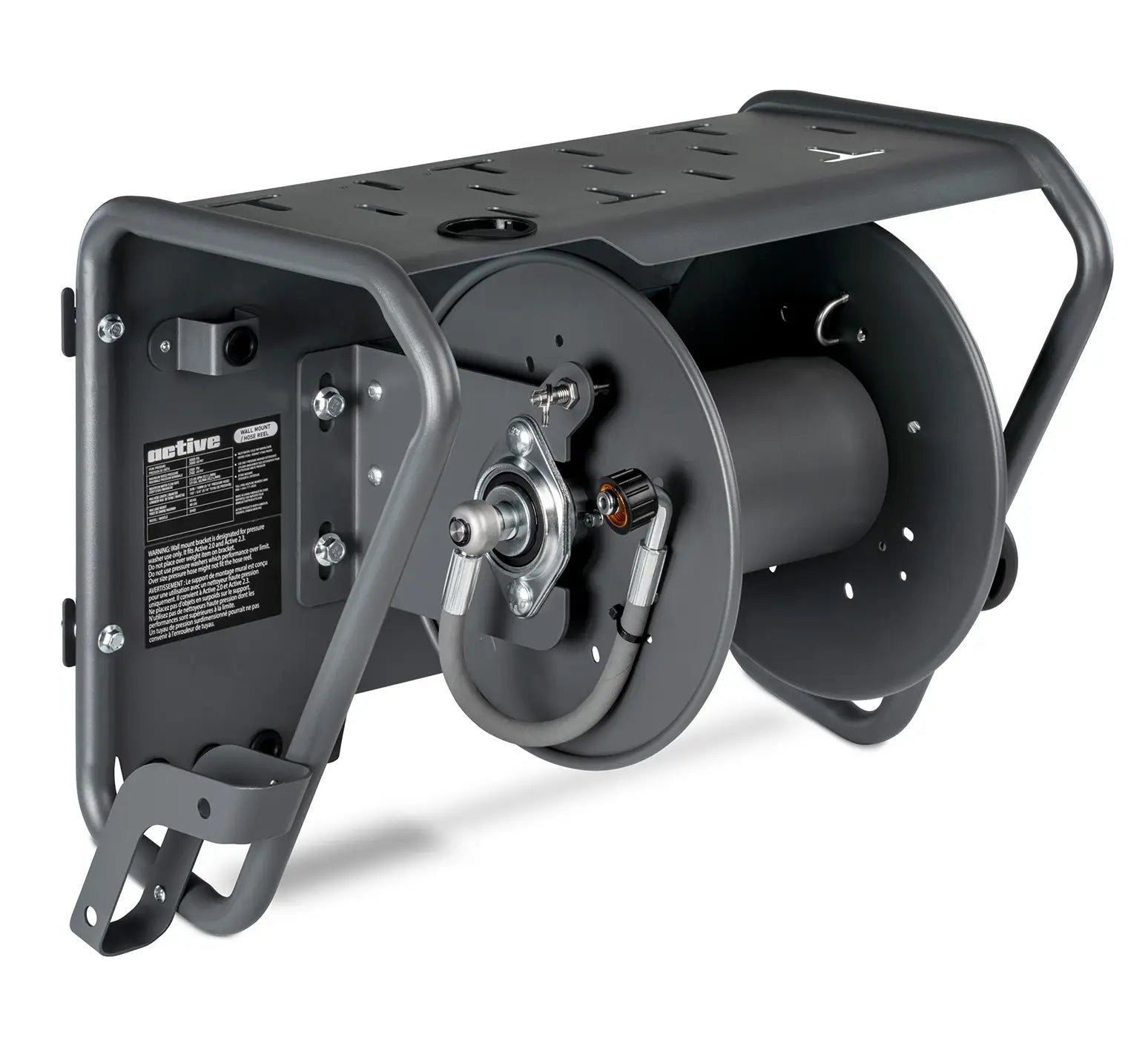

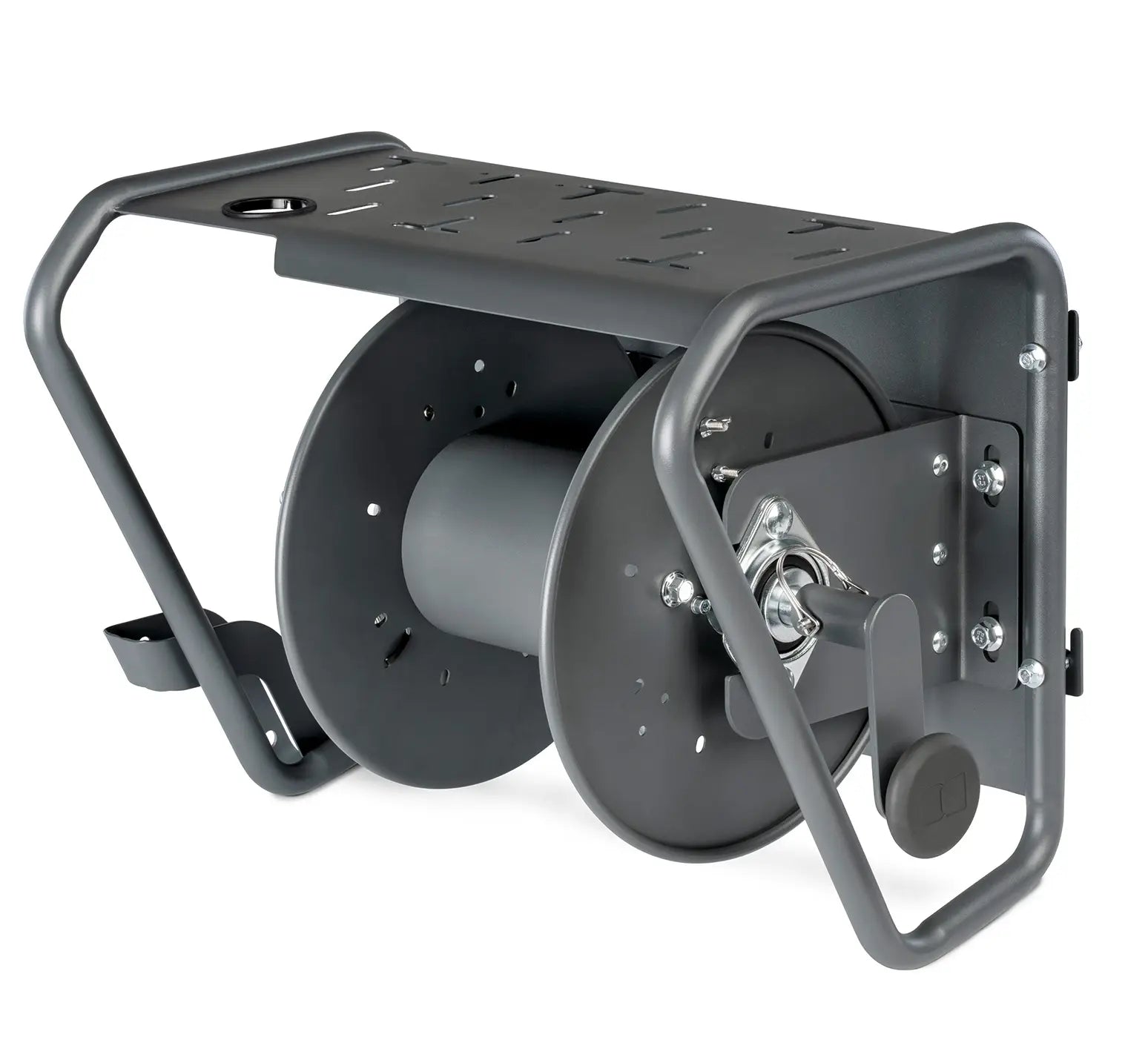

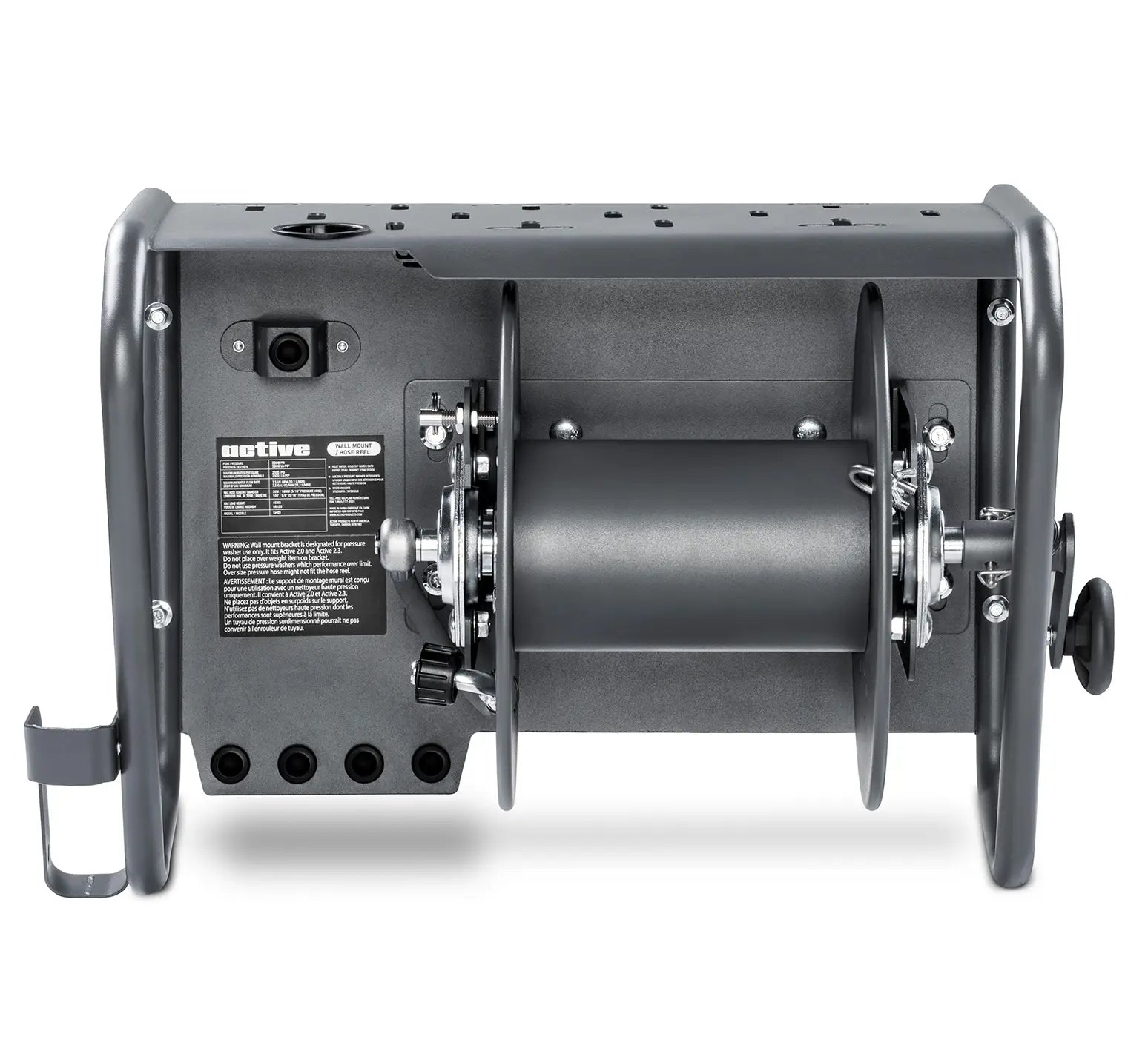

Active™ Pressure Washer Wall Mount & Hose Reel – Ultimate Integrated Storage System
The Active™ Pressure Washer Wall Mount & Hose Reel is the ultimate heavy-duty, all-in-one storage solution designed to elevate your vehicle detailing setup. Engineered specifically for the Active™ pressure washer range, this premium steel system organises your entire wash bay, eliminates cluttered floors, and protects your high-pressure hoses from kinks and wear.
Ideal for car enthusiasts and professional detailers alike, this space-saving command centre features dedicated onboard slots for your gun, foam cannon, lance, and nozzles. It’s the fastest way to streamline your wash routine, add a professional aesthetic to your garage, and complete your ultimate integrated washing experience.
Key Features of Active™ Wall Mount:

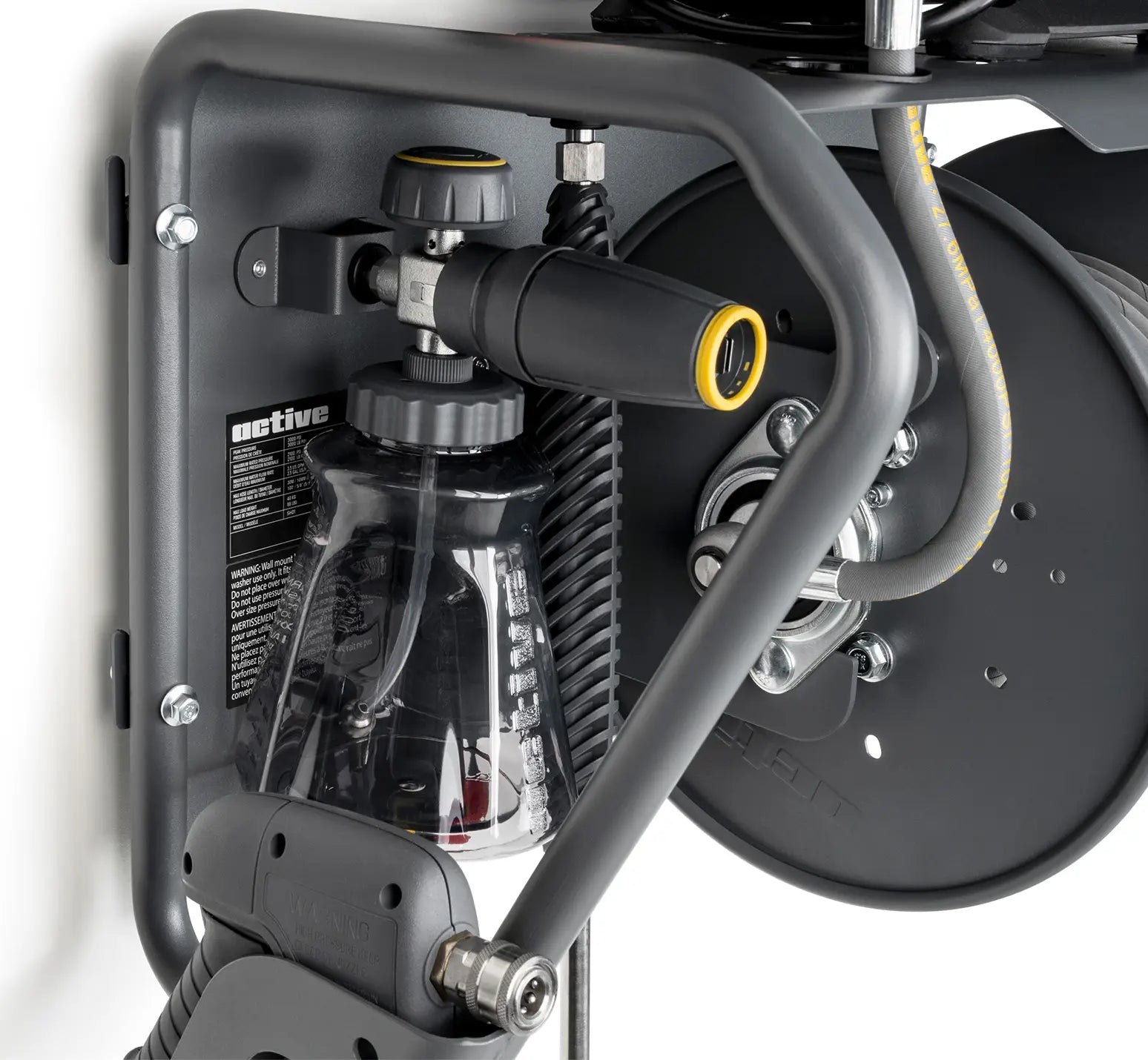

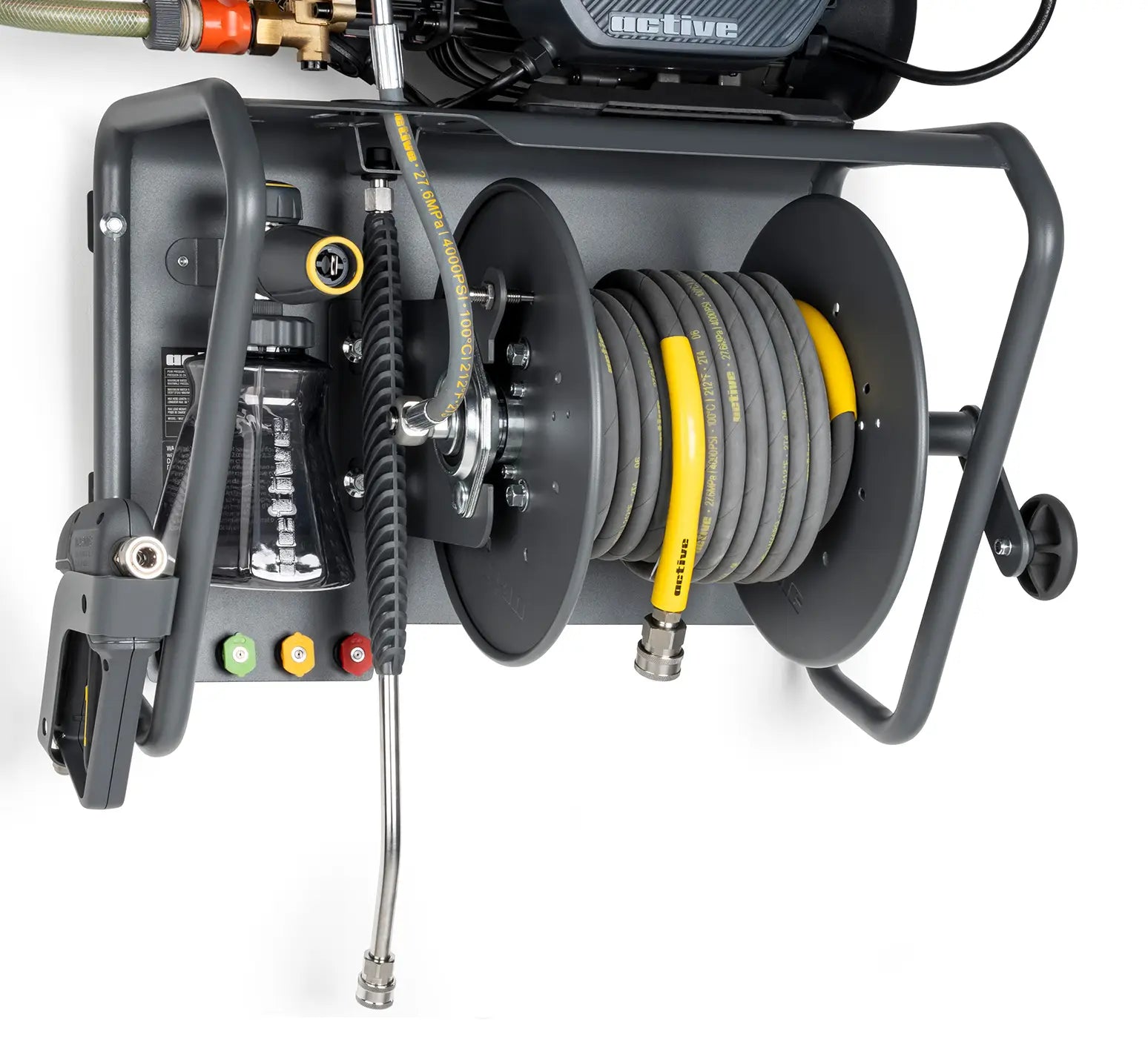

✔️ Integrated Wash Station – Dedicated onboard slots for your gun, foam cannon, lance, and 4 nozzles

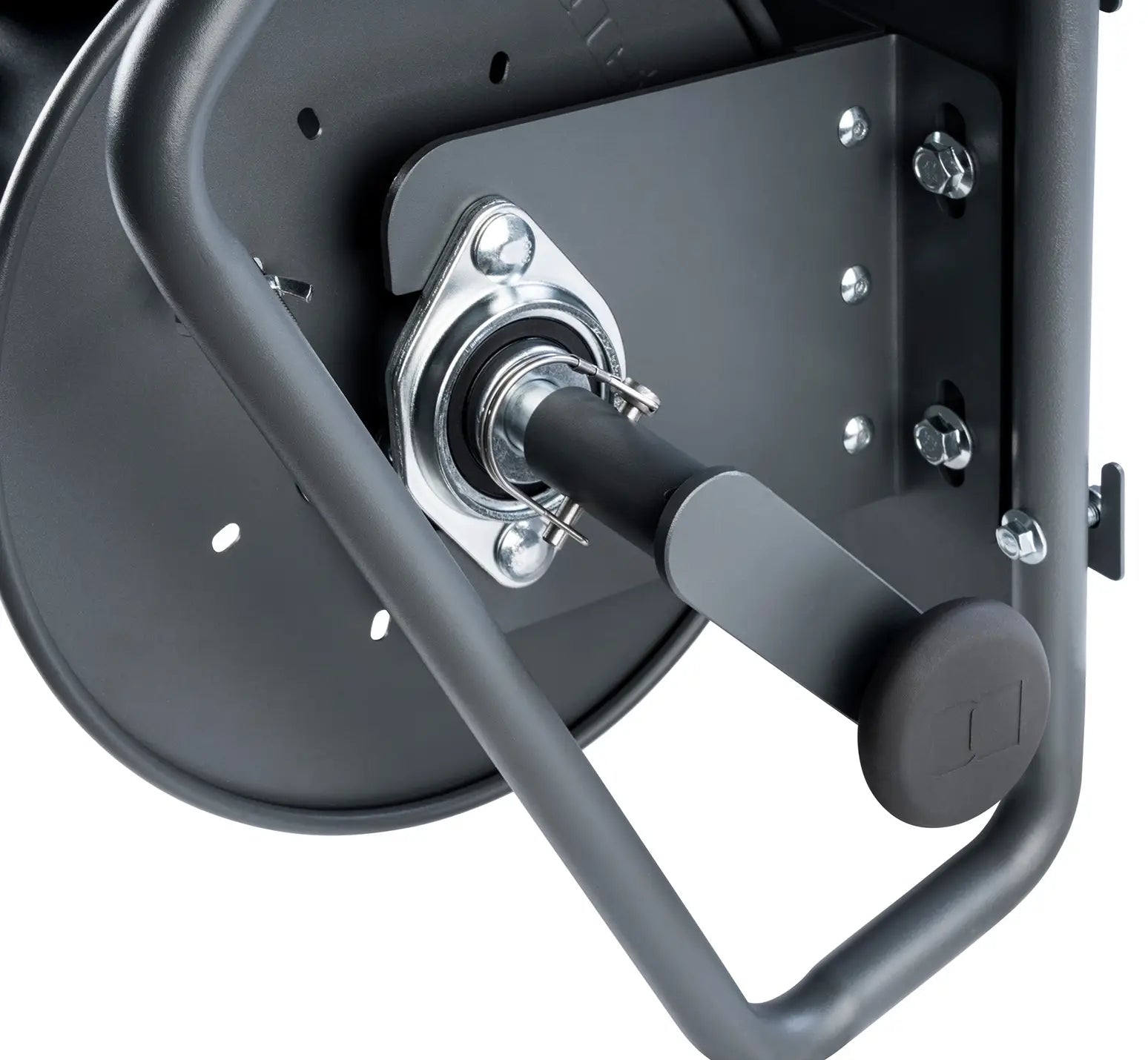

✔️ Smooth Crank Operation – Fluid rewind system with a comfortable handle and secure rotation lock pin
✔️ Heavy-Duty 304 Stainless Steel – Built with a rugged metal frame and stainless steel valve to withstand harsh conditions
✔️ 16” Stud-Ready Backing Plate – Engineered for rock-solid, safe wall mounting with a massive 40kg load capacity
✔️ High-Capacity Design – Accommodates up to 30m of 3/8" or 45m of 5/16" high-pressure hose
How to Use:
1. Mount the 16" backing plate securely to your wall studs using the included hardware kit
2. Attach the pre-assembled metal frame and hose reel to the mounting plate
3. Connect your pressure washer to the reel using the included M22-14mm jumper hose
4. Wind your high-pressure hose onto the reel and slot your accessories into their dedicated holders
Technical Specifications:
Hose Reel
- Inlet fitting: 3/8” QC female coupler
- Outlet fitting: M22x14mm
- Extension hose pre-installed
- Reel rotation lock: release lock pin before turning the reel
- Hand crank: customer need install hand crank and lock by pin
- Hose clamp: customer needs to make adjustment to secure hose
- Stainless steel (304) reel valve

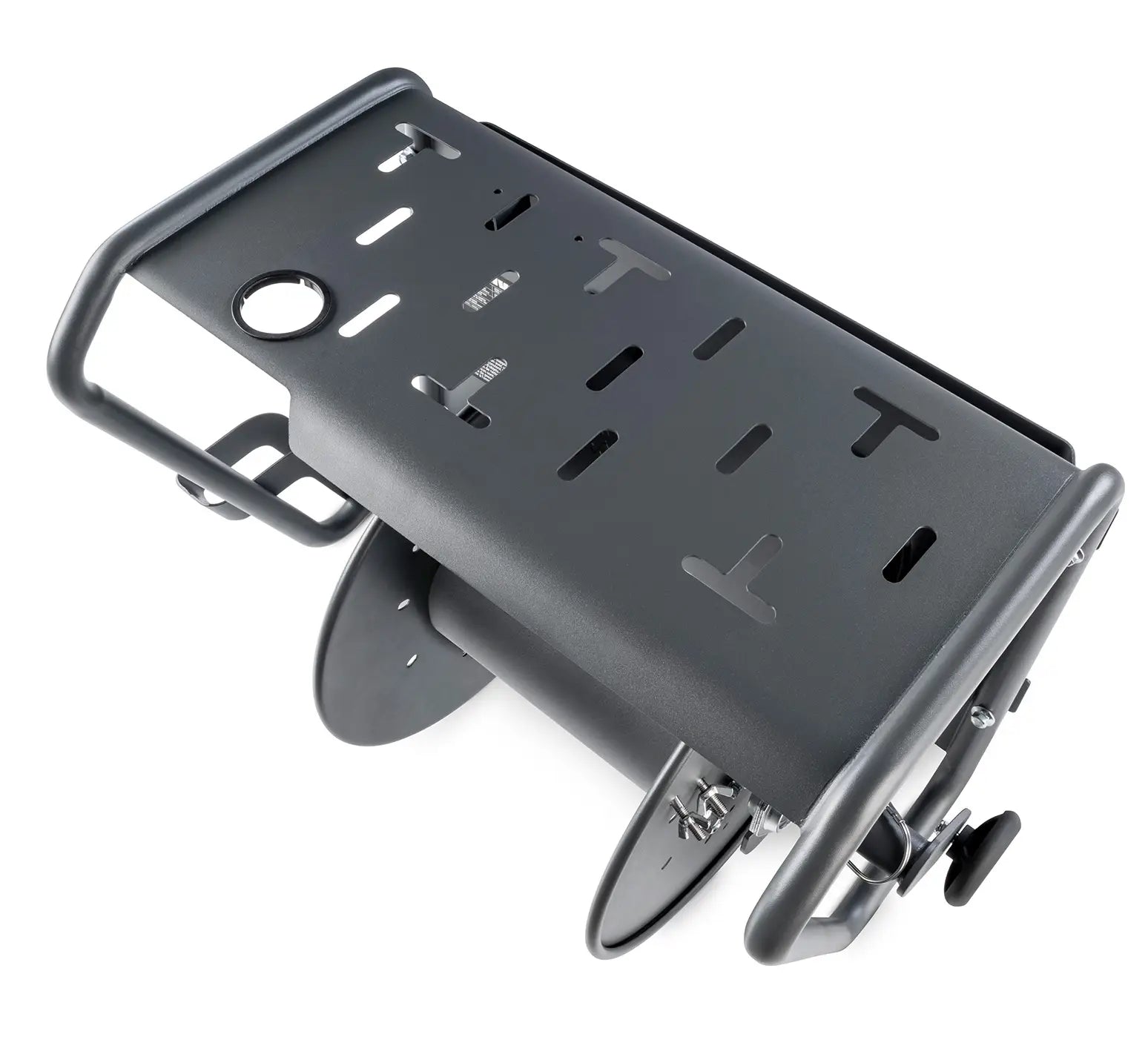

Metal frame
- Hose reel is pre-installed on frame
- Customer installation is required for wall mount mode

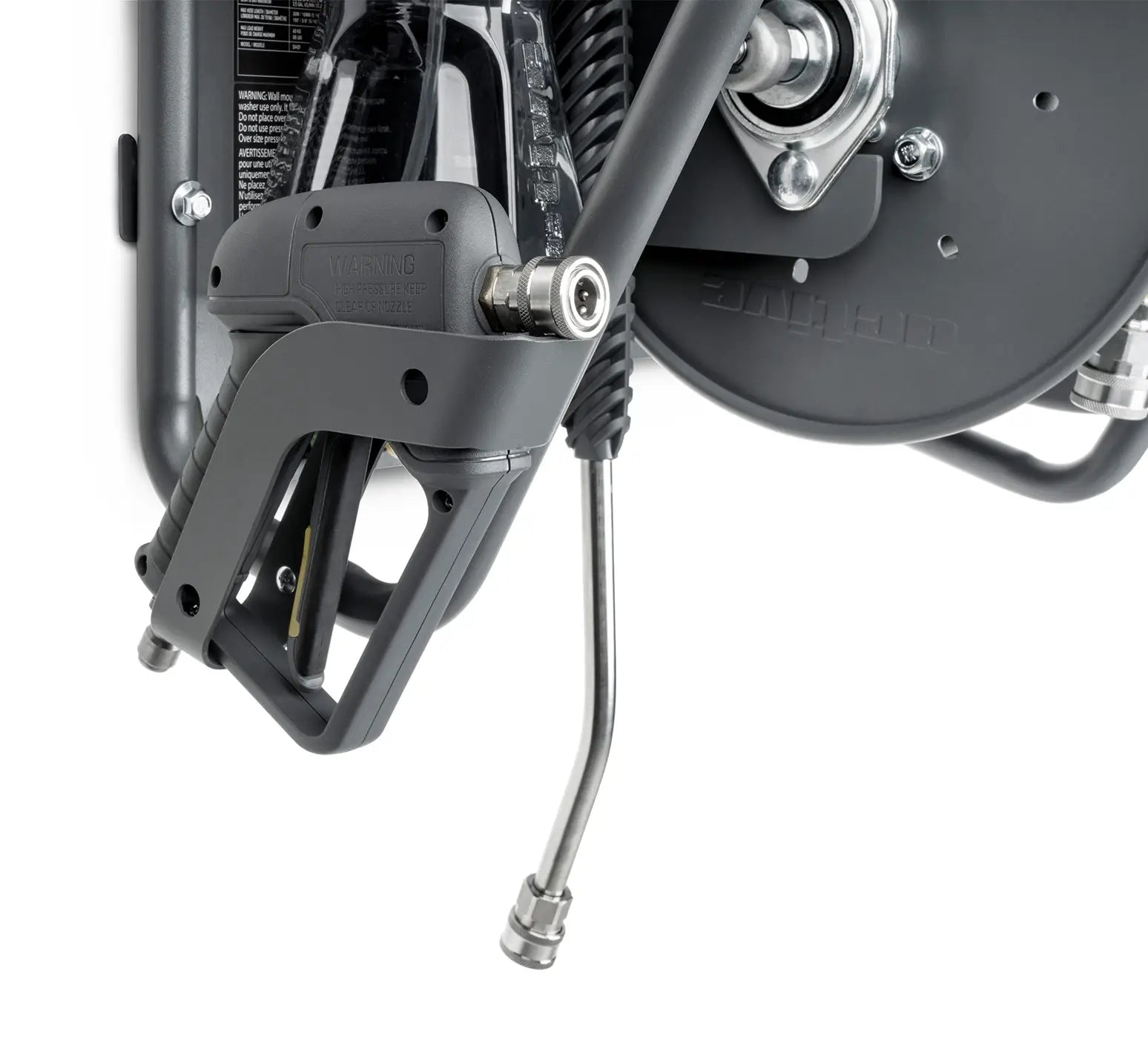

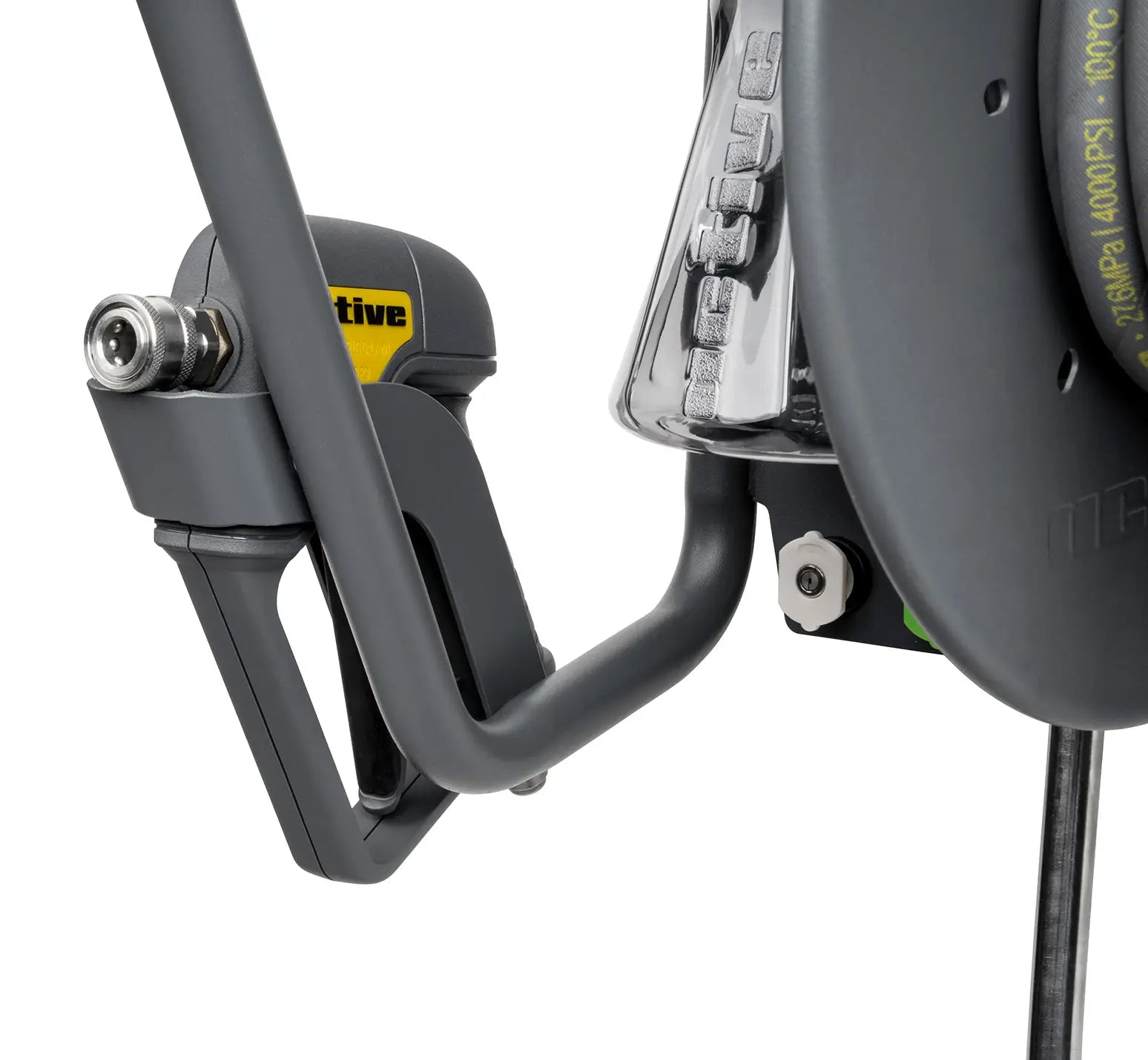

- Customer installation required for gun holder and fasten by screw
- Customer adjustment is required for hose clip
Hardware
- 4pcs 6x30 mm screws to fasten mounting plate on the wall
- 4pcs M8x 20mm bolts to secure wall mount to mounting plate
- 2pcs M5x14 bolt to secure gun holder on frame
Accessories
- Hand crank with lock pin
- Mounting plate
- Gun holder
- Hardware kit
- Jumper / lead hose to pressure washer (M22 x 14mm - female)
Measurements:
Hose reel
- Outer disc diameter: 300 mm
- Inner barrel diameter: 120 mm
- Reel width: 200 mm
- Max. accommodate hose: 5/16” pressure hose, 100 ft
Metal cage
- Width * Depth * Height (mm): 525 x 350 x 405
- Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
- Max loading capacity: 40kg
💡 Top Tip: Pair this with the Active™ accessory bundle to complete the set and achieve a seamless, professional-grade garage wash setup.
Why Buy from Clean and Shiny?
✅ Official Stockist
✅ Fast & Reliable Delivery
✅ Expert Support & Product Advice

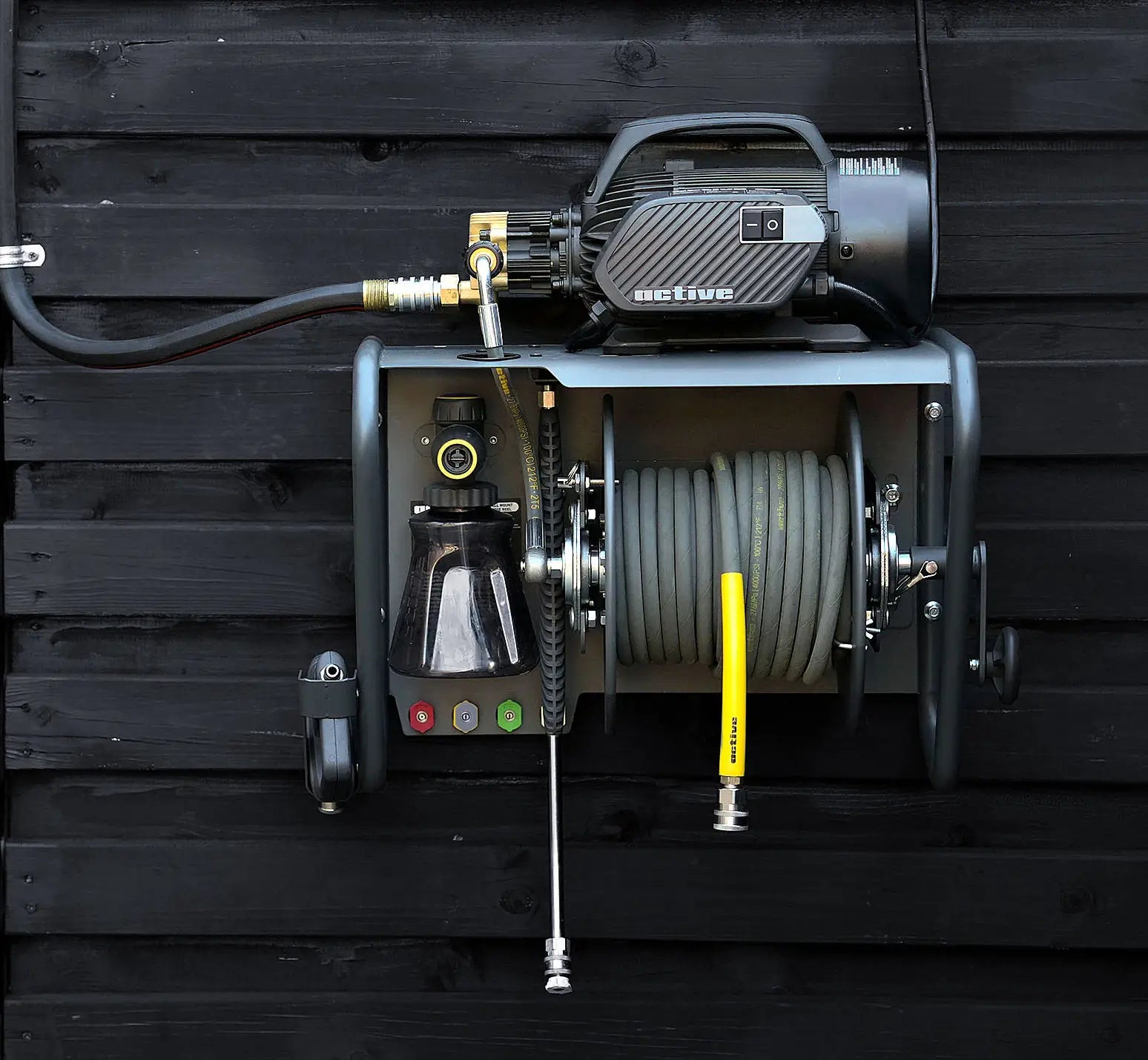

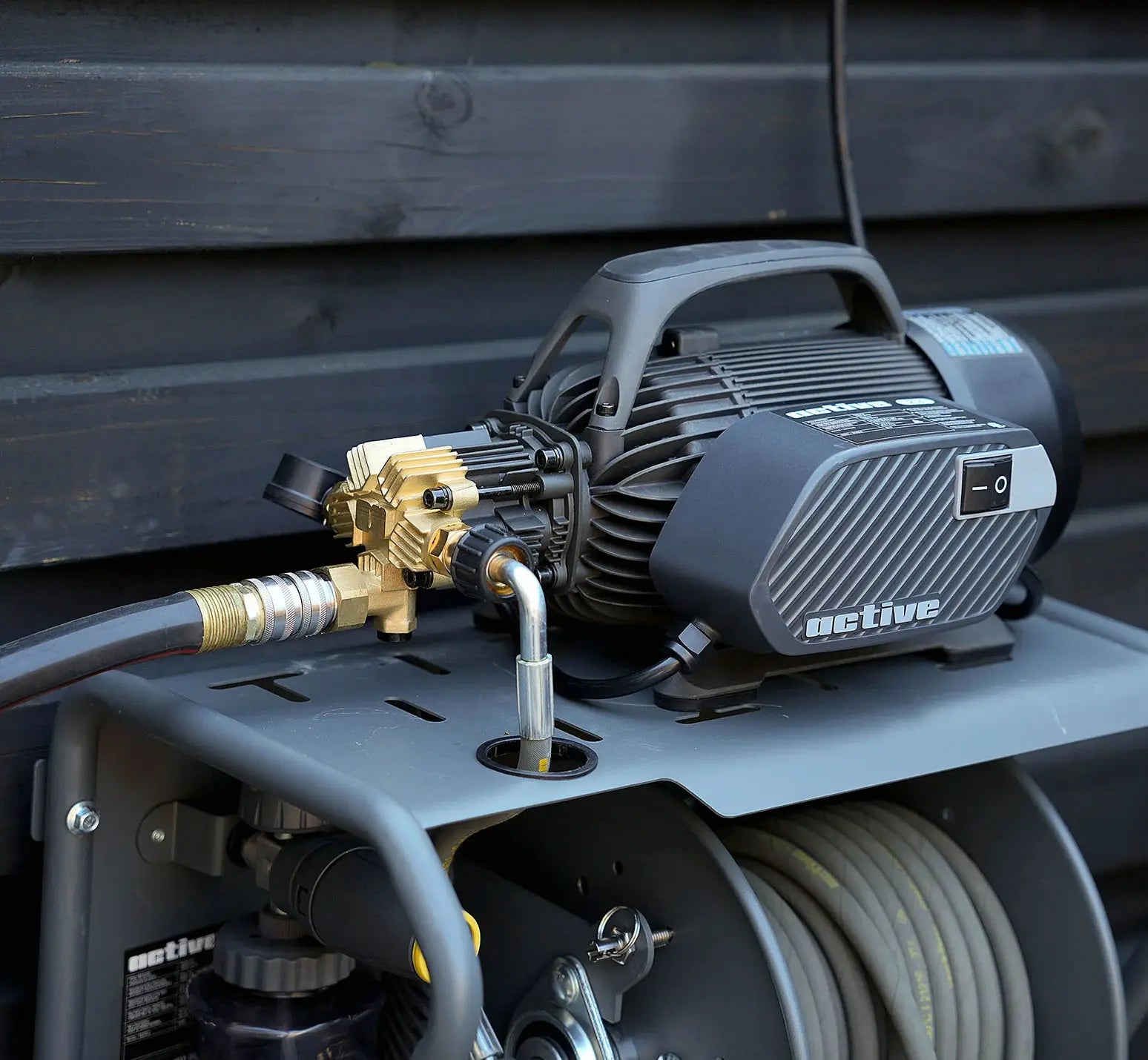

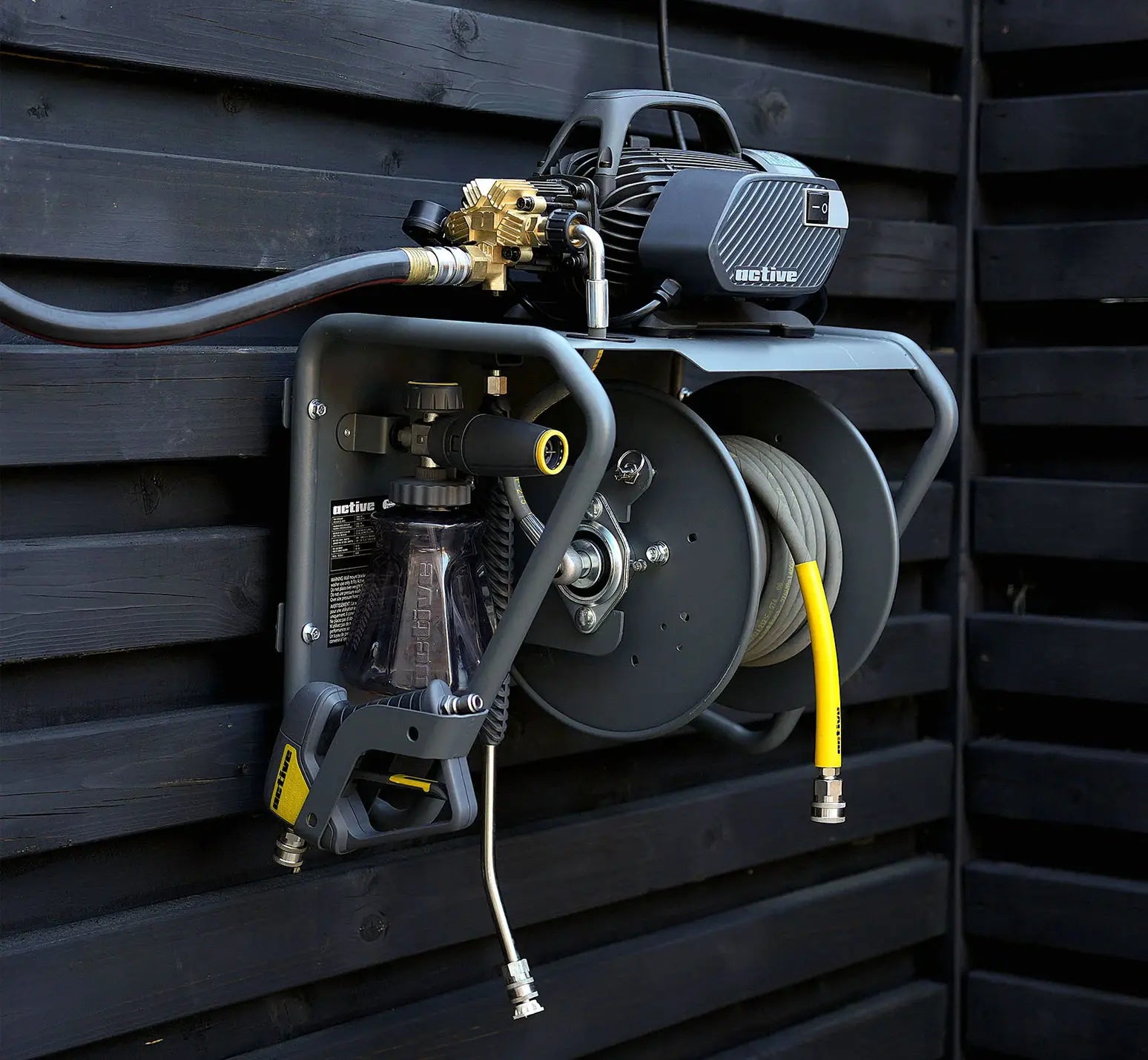

(Please note: Active™ pressure washers, guns, and detailing accessories are shown for demonstration purposes and are available to purchase separately.)
